Ferrite Core Shapes: A Comprehensive Guide

Choosing the right ferrite core shape is a critical design decision that directly affects transformer efficiency, inductance stability, EMI performance, and overall space utilisation. While many engineers understand the magnetic properties of ferrite materials, selecting the optimal core shape can still pose a challenge – especially when balancing electrical performance with mechanical constraints. This guide explores the most commonly used ferrite core shapes, their physical characteristics, key benefits, and typical applications to help you make informed design choices.

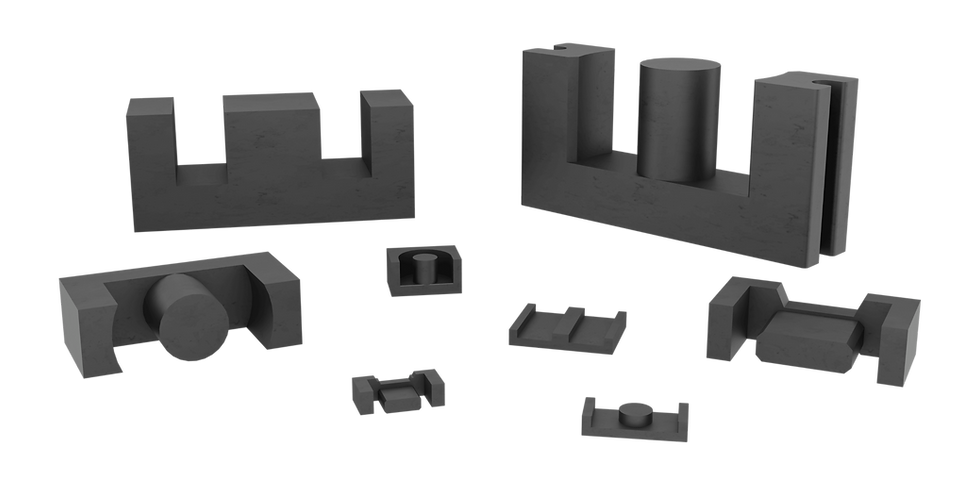

Ferrite E Cores

E cores are among the most widely used due to their simple structure and excellent magnetic performance. They consist of two symmetrical halves forming a closed magnetic path with a central leg and two side legs, creating dual winding windows. Variations like ER and EQ cores use round centre legs to reduce winding losses and accommodate larger wire gauges. EQ cores, in particular, offer a flat geometry that improves thermal management and suits PCB-mounted power inductors.

ETD cores (Economic Transformer Design) maintain a near-constant cross-sectional area along the magnetic path, which promotes even flux distribution and reduces localised saturation—making them ideal for high-frequency switch-mode power supplies (SMPS). EFD and EC cores focus on low-profile applications, optimising space in compact consumer electronics.

The ELP and EPX series push this further, maximising surface area for thermal dissipation and planar winding integration. Notably, PLT (Plate) cores, although categorised under P-family cores, share this same low-profile, flat architecture and are often grouped alongside ELP cores in space-constrained, board-mounted applications. These cores are ideal when vertical height is limited and high-frequency operation demands efficient thermal performance.

Engineers use E cores extensively in flyback transformers, push-pull topologies, and power inductors, especially when seeking predictable inductance with low leakage and good thermal handling. Accessories like coil formers, clamps, and mounting brackets support easy assembly and automated production.

Ferrite P Cores

Pot cores fully enclose the winding area, offering a nearly closed magnetic loop that minimises electromagnetic interference (EMI). This inherent self-shielding makes them ideal for sensitive analogue or RF circuits. PCH and PS cores are miniature variants used in precision electronics such as watches and sensor coils.

PQ (Power Quality) cores provide a larger winding window relative to core size, making them excellent for high-power inductors. They can be precisely gapped to control inductance and saturation characteristics. PM cores combine the benefits of PQ and P cores, supporting both high bias currents and space-saving layouts.

These cores excel in PFC inductors, power line filters, and chokes in both offline and isolated converters. Their mechanical design simplifies bobbin mounting and reduces radiated noise without external shielding, which is a major plus in industrial and medical applications.

Ferrite Distributed Air Gap (DAG) Cores

DAG cores feature multiple small air gaps distributed around the magnetic path instead of a single large gap. This architecture reduces fringing flux – minimising eddy current losses and hot spots in nearby conductors. As a result, DAG cores allow designers to increase winding fill and improve thermal efficiency.

They are particularly effective in high-power density applications such as resonant converters, PFC circuits, and onboard charging systems in electric vehicles. DAG cores also exhibit improved stability across temperature ranges and under high DC bias, helping maintain inductance without sacrificing efficiency.

Available in standard E, ETD, and PQ geometries, DAG cores provide a straightforward upgrade path for engineers needing better thermal performance without redesigning their mechanical layout.

Ferrite I and U Cores

I and U cores represent some of the most mechanically simple magnetic structures. An I core is a straight ferrite bar often paired with a U core to form a complete magnetic circuit. These cores are easy to assemble and allow the winding to slide directly onto the leg, making them convenient for prototyping or low-volume production.

They are frequently used in ignition coils, low-frequency power transformers, magnetic sensors, and custom EMI filters. The open structure allows for mechanical tuning of inductance by adjusting the air gap or overlap between the core halves. However, they provide limited EMI shielding and are more susceptible to flux leakage, making them better suited for internally shielded enclosures.

Ferrite RM and Low-Profile RM Cores

RM (Rectangular Modular) cores are compact pot-core alternatives designed for high inductance per unit volume. Their boxy shape and central post provide excellent space utilisation, while optional low-profile variants cater to height-constrained designs.

These cores are optimised for automated surface-mount assembly and are commonly used in telecom equipment, industrial control modules, and compact DC-DC converters. Their excellent performance under DC bias and low magnetic losses make them well-suited to energy-efficient power supplies operating up to 500 kHz.

RM cores also offer tight mechanical tolerances and support a wide range of bobbin and gapping options, making them easy to integrate in high-volume production environments.

Ferrite Rod and Bead Cores

Rod cores are simple cylindrical ferrite components used in RF tuning circuits, antennas, and inductors where field concentration is needed along the length of the core. They enable compact, high-Q resonant circuits and are a staple in AM radios, RFID readers, and loop antennas.

Bead cores, by contrast, are designed to suppress high-frequency noise. They’re typically clamped or slipped over cables to serve as EMI filters, especially in consumer electronics and USB or HDMI interfaces. Available in both solid and split configurations, ferrite beads offer broadband attenuation with minimal DC resistance, making them easy to add to existing designs without circuit modification.

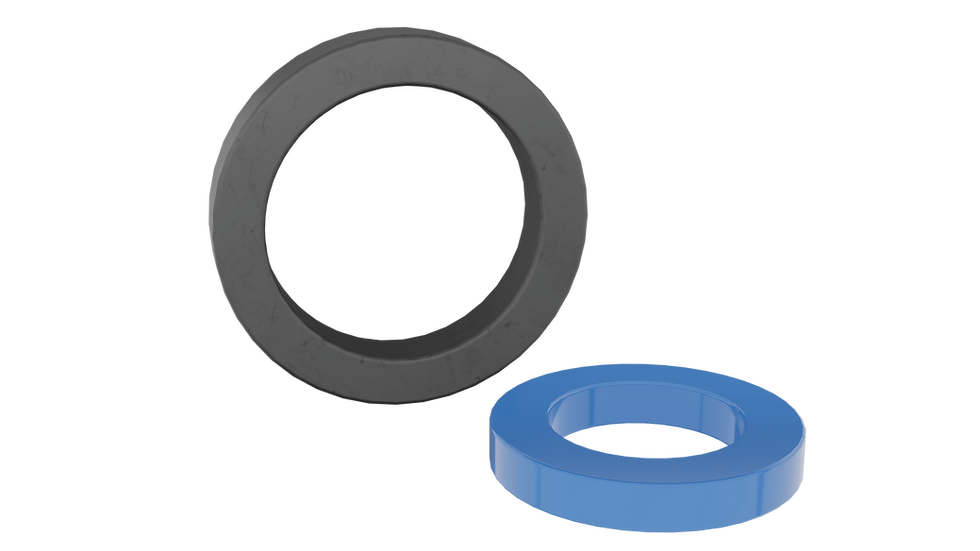

Ferrite Toroidal Cores (Coated and Uncoated)

Toroidal cores provide the most efficient magnetic path thanks to their closed-loop, gapless geometry. The symmetry of the toroid ensures minimal stray fields and excellent energy storage, making them ideal for high-efficiency transformers and inductors. They are often used in audio equipment, low-noise power supplies, and EMI-sensitive medical devices.

Uncoated toroids offer maximum permeability but can be fragile and susceptible to moisture. Coated toroids provide mechanical robustness and environmental protection while still allowing for hand-winding or automated placement. Because they inherently confine magnetic flux, toroids reduce the need for external shielding, which saves space and cost.

Their compact form factor, high inductance density, and wide material selection make toroids a go-to choice for engineers prioritising efficiency and EMI performance.

Ferrite Core Summary

Core Shapes	Variants	Key Features	Typical Applications
E Cores	E, EFD, EC, ELP, EP, EPX, EQ, ER, ETD, EV	Open structure, efficient winding, easy gapping, many low-profile variants	SMPS transformers, flyback converters, power inductors
Pot / P Cores	P, PCH, PS, PQ, PLT, PM	Self-shielding, low EMI, precise inductance control, compact	EMI filters, PFC inductors, telecom transformers, precision coils
DAG Cores	DAG versions of E, PQ, and ETD	Distributed gaps reduce fringing loss, improve thermal and electrical efficiency	High-current inductors, onboard chargers, power converters
I / U Cores	I, U, UR	Simple shapes, easy to assemble, adjustable air gap	Custom inductors, ignition coils, cable chokes, magnetic sensors
RM Cores	RM, RM Low Profile	Compact, optimised for PCB mounting, good shielding, vertical / horizontal bobbins	High-density transformers, DC-DC converters, industrial electronics
Rods & Beads	Rod, Bead (split / solid)	Cylindrical, used in RF tuning or clamp-on EMI suppression	Loop antennas, RF filters, cable EMI suppression
Toroidal Cores	Uncoated, Coated	Closed magnetic loop, minimal stray field, high inductance per volume	Power transformers, EMI chokes, audio & medical equipment

Choosing Ferrite Cores

Ferrite core selection is more than just matching inductance values—it's about choosing the right shape to balance magnetic performance, thermal efficiency, EMI behaviour, and mechanical fit. Whether you're designing a high-frequency transformer, a compact inductor, or a low-noise filter, understanding the strengths and trade-offs of each core shape will help you optimise your circuit for both performance and manufacturability.

This guide aims to serve as your practical reference when navigating the wide landscape of ferrite core shapes. For specific AL values, gapping options, and material data, always consult manufacturer datasheets and modelling tools. When in doubt, prototype multiple shapes and evaluate thermal and EMI performance under real operating conditions.
